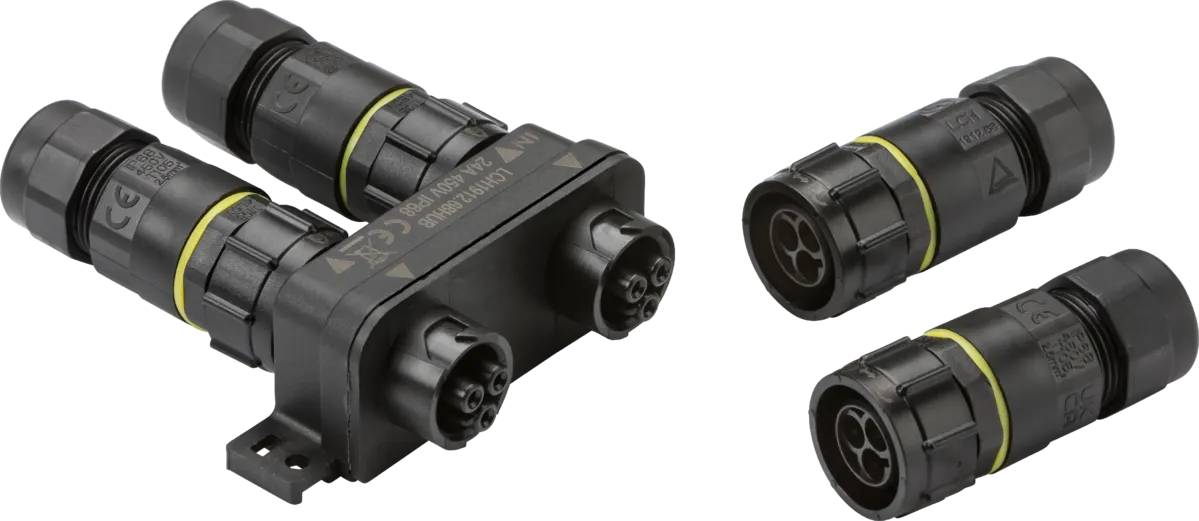

Knightsbridge JB0018 IP68 24A 1 Inlet to 3 Outlets Plug and Socket Type Weatherproof Hub
Mountable Plug and Play Power Hub. Plug and Socket style connection. Twist and lock action. Supplied with a set of sleeves
Terminals are suitable for rigid conductors or ferruled ends - simply push in by hand or if using flexible conductors - it requires holding button with screwdriver as you insert.
- IP68 rated (@5bar)
- 24A 450V PTI 250, T85
- Manufactured from PA66, V-0, 960°C, PTI:250 with silicon sealing gasket.
- Silver-plated stainless-steel lever terminals.
- Min: 5mm cable diameter
- Max: 14mm cable diameter
- For use with H07RNF 3G 0.75mm2 - 2.5mm2 cable
- Operating Temperature: -30° C ~ 85° C
- Storage Temperature: -30° C ~ 85° C
- Barometric pressure: 86~106Kpa
Data Sheet:
